Posted by Keats Manufacturing on | Comments Off on What types of materials are commonly used for metal stamping parts?
Metal stamping is an essential process for manufacturing precision components across automotive, medical, electronics, and aerospace industries. Understanding the materials that can be efficiently used in metal stamping is essential for engineers and procurement professionals alike. This article explores the types of materials commonly employed in metal stamping, their properties, and considerations for selecting the best options for your projects.
What form of material is used for metal stamping?
The materials typically used for metal stamping can be categorized into different forms, including sheets, coils, and strips. The choice of material form is essential for achieving the desired specifications and tolerances in stamping parts.
Properties for stamping:
• Ductility: The ability to deform under tensile stress without breaking.
• Tensile Strength: The resistance of a material to being pulled apart.
• Hardness: The ability to withstand deformation and wear.
• Corrosion Resistance: Essential for parts exposed to harsh environments.
These properties ensure that the stamping parts material can endure the stresses of the manufacturing process while maintaining structural integrity. Additionally, at Keats Manufacturing Co., our in-house tooling capabilities allow us to engineer dies that maximize the performance of these materials, ensuring optimal results in the stamping process.
What metals are best for stamping?
Material Group
Grades & Applications
Low-carbon steel (A1008/A1010, IF, HSLA)
The workhorse for brackets, shields, and housings. Excellent ductility and consistency, great for deep draws and complex forms, readily weldable and paintable. HSLA grades add strength without sacrificing formability—perfect when you want thinner, lighter parts.
High-carbon & spring steel (1050–1095)
Chosen for clips, clamps, springs, and retainers. These grades respond well to heat treat for high strength and fatigue life. Expect tighter bend radii post-harden and plan secondary operations (stress-relief, deburr) accordingly.
Stainless steel (300/400 series, PH & duplex)
300 series (301/304/316): Austenitic, very formable with excellent corrosion resistance.
400 series (409/430/434/444): Ferritic, magnetic, good corrosion resistance with better cost stability.
PH & duplex (17-4PH, 2205): For high strength, wear, and corrosion resistance with reduced section thickness.
Selecting the right alloy involves more than corrosion resistance and strength—application demands and cost trade-offs matter just as much. Our blog Material Matters: Choosing the Right Metal for Your Project, breaks down how to evaluate those decisions efficiently.
Selecting the right alloy involves more than corrosion resistance and strength—application demands and cost trade-offs matter just as much. Our blog, Steel Alloys Used in Custom Metal Stamping Process, breaks down how to evaluate those decisions efficiently.
Copper & Alloys
Copper (Cu: C110, Cu-ETP): 99.9% pure copper. This is one of the most common materials for Terminals, Bubars, and other parts that require high electrical conductivity. Copper is generally easy to form and has little springback.
Brass (Cu-Zn: C260, C268, C272): Clean edges, stable springback, and superior conductivity make brass a favorite for electrical terminals, contacts, and decorative hardware.
Bronze & phosphor bronze (C510/C519/C521): Copper-tin alloys renowned for wear resistance, low friction, and fatigue strength.
High-performance copper alloys (C194/C197/C19210, C7025/C7026): Engineered for today’s electrification requirements. See more on Copper Alloys for Metal Stamping.
Aluminum (5xxx/6xxx/7xxx)
5xxx (5052/5083/5754): Non-heat-treatable Mg-bearing alloys—great formability, good strength-to-weight, and strong corrosion resistance.
6xxx (6061/6082): Heat-treatable Al-Mg-Si—balanced strength and machinability for structural stampings.
Formability vs. strength trade-off: Low-carbon and 5xxx Al lead for deep draws; spring steels, PH stainless, and Corson coppers deliver strength.
Electrical/thermal performance: Copper, brass, and advanced Cu alloys offer high conductivity.
Corrosion performance: Stainless and 5xxx Al excel in harsh environments.
Finish options: All are compatible with common finishes (tin, nickel, silver, zinc, passivation, anodize).
We routinely hold tight tolerances to ±0.0002 in., enabling intricate features—lances, coined details, fine slots, and precision bends—across all of the materials above. If you share your target environment (load, current, temperature, corrosion, plating), we’ll recommend the optimal alloy and temper for cost, performance, and throughput.
What is the best metal for metal stamping?
Determining what metal is best for stamping depends on the specific application and requirements. Factors influencing the choice of metal include:
Application EnvironmentExposure to moisture or chemicals may necessitate corrosion-resistant materials like stainless steel.
Mechanical PropertiesHigh-strength applications may require high-carbon steel, while low-carbon steel may be more appropriate for ductility.
Cost ConsiderationsBudget constraints can influence material selection, with low-carbon steel often being more economical.
Material selection in metal stamping is essential to achieving desired performance, durability, and overall economic viability. Ultimately, the best metal will align with the functional requirements and overall budget of the project. At Keats, we provide The Many Benefits of Just-in-Time Inventory delivery capability, ensuring that the selected materials are available when needed, thereby optimizing project timelines and costs.
What gauge metal for stamping?
The gauge of metal used in stamping is a very important factor that directly impacts the performance and durability of the final product. Guidelines for selecting the appropriate gauge:
Application Requirements: Heavier parts may require thicker gauges, while lighter applications can utilize thinner gauges.
Material Type: Different metals have different strengths; for example, aluminum may require a thicker gauge than steel.
Manufacturing Capabilities: Ensure the chosen gauge aligns with the capabilities of the stamping equipment being used.
Selecting the right gauge is essential for achieving the desired balance between strength, weight, and cost. We operate over 150–175 stamping and wire-forming machines across our three facilities, allowing for flexibility in gauge selection and production scalability.
Can you stamp stainless steel?
Yes, you can stamp stainless steel, but it comes with specific challenges:
Work Hardening: Stainless steel can harden during the stamping process, making it more challenging to form.
Tool Wear: The hardness of stainless steel can lead to increased wear on tooling, necessitating more frequent replacements.
Comparison with Other Metals: While stainless steel offers excellent corrosion resistance, it may require more precise tooling and increased energy.
Understanding these factors is critical for successful stainless steel stamping. Our lifetime guarantee on tooling ensures that the tooling used for stainless steel stamping is built to withstand these challenges, providing peace of mind for our clients.
Aluminum for Progressive Stamping
Advantages:
Lightweight
Corrosion Resistance
Ease of Fabrication
Disadvantages:
Lower Strength
Cost (Alloy Dependent)
At Keats Manufacturing Co., we utilize automated assembly capabilities of up to 200 pieces per minute, ensuring that aluminum components can be efficiently processed and assembled for high-volume production.
Posted by Keats Manufacturing on | Comments Off on What Should I Consider When Choosing a Custom Metal Stamping Provider?
Choosing the right custom metal stamping provider is crucial for ensuring consistent precision, quality, and long-term manufacturing success. With the right partner, you can achieve precision, quality, and efficiency in your manufacturing processes. This article will guide you through essential considerations, including types of metal stamping, practical applications across industries, key supplier features, cost factors, and design guidelines. Understanding these elements will empower you to make an informed decision when selecting a custom metal stamping manufacturer.
What are the types of metal stamping?
Metal stamping encompasses various processes, each tailored for specific applications. The four main types of metal stamping include:
Progressive Die Stamping
This process involves feeding a strip of metal through a series of stations in a single die. Each station performs a specific operation, such as cutting or bending, until the final part is produced. It’s ideal for high-volume production and offers excellent precision.
Understanding how progressive die stamping compares to multi-slide methods can help clarify which approach best fits your part design and production volume. For a deeper comparison, see our blog Difference Between Multi-Slide and Progressive Die Stamping.

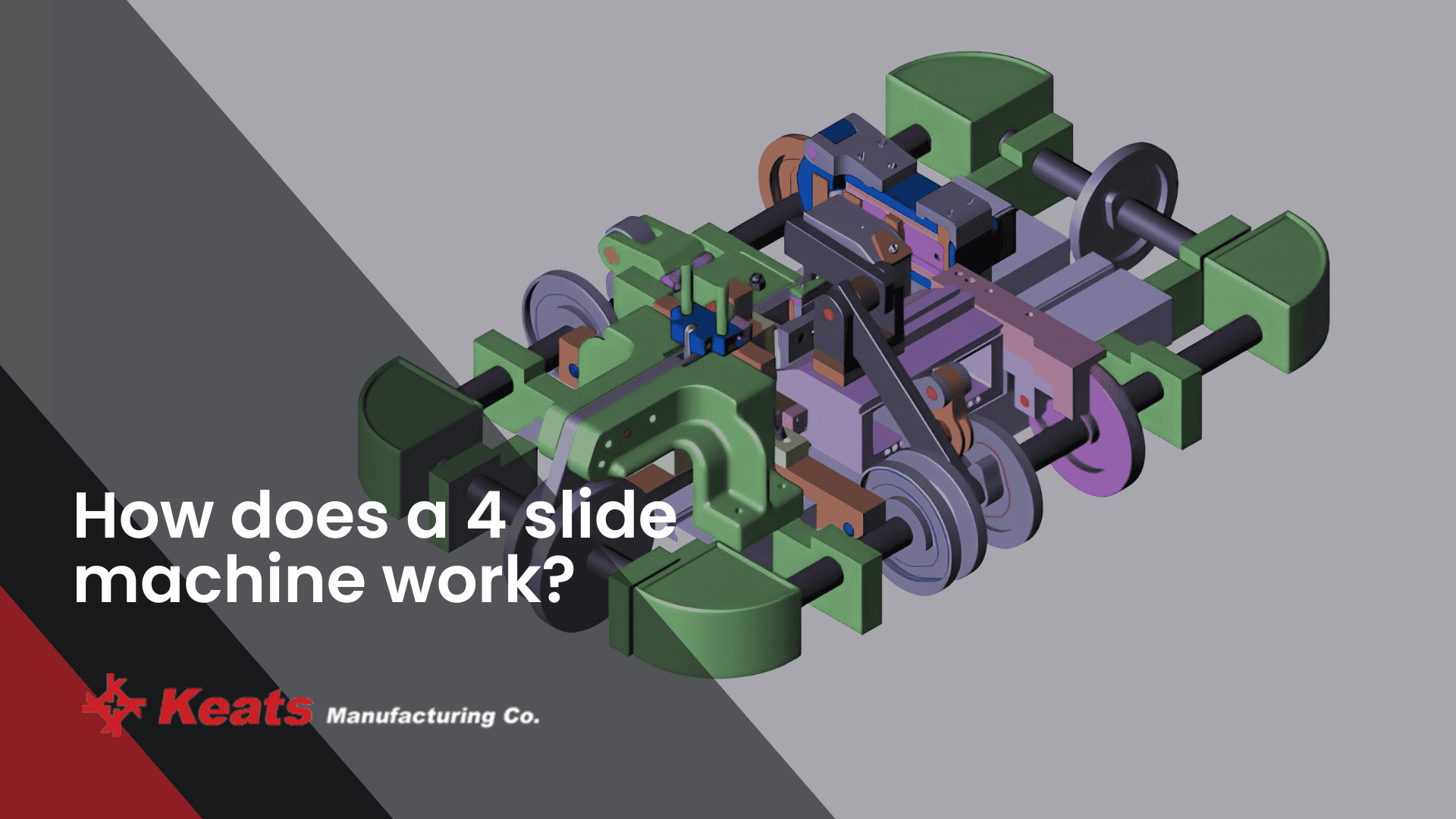

Four-Slide Stamping
This method uses a machine with four sliding tools that can perform multiple operations simultaneously. It’s well-suited for complex shapes and is commonly used in industries requiring intricate designs, such as electronics.
Deep Draw Stamping
In this process, a flat metal sheet is drawn into a die to create a three-dimensional part. It is particularly useful for producing parts like cans and containers, often utilised in the automotive and appliance sectors.
Blanking and Punching
These processes involve cutting out shapes from a sheet of metal. Blanking creates a flat shape, while punching removes material to create holes or complex designs. These methods are widely used in various industries, including construction and medical devices.
Understanding the different types of metal stamping available helps you select the process best suited to your application. At Keats Manufacturing Co., all dies and tooling are engineered and built in-house, ensuring that we maintain strict quality control throughout the production process.
What are some practical applications of metal stamping in various industries?
Metal stamping is a versatile manufacturing process used across numerous industries. Here are some practical applications:
Automotive
Metal stamping is essential for producing components like brackets, housings, and chassis parts. The precision and durability of stamped parts ensure vehicle safety and performance. Notably, nearly every car in North America contains a Keats part, showcasing our extensive involvement in the automotive sector.
Appliance
In this industry, metal stamping is used for creating critical components such as brackets and structural parts, where precision and weight reduction are paramount. Our tooling is backed by a lifetime guarantee, ensuring reliability in high-stakes applications.
Electronics
Stamped metal parts are used in electronic devices for connectors, housings, and other components, ensuring reliable performance and durability.
150–175 Machines
Across three facilities, we can meet high-volume demands efficiently.
Utilizing metal stamping in these applications provides benefits such as reduced production costs, improved efficiency, and consistent part quality.
What are the key features to look for when choosing a stamping supplier?
Selecting the right metal stamping partner can make or break a program. Beyond getting a competitive price, you need a supplier who can protect your quality, delivery, and long-term total cost of ownership. Here are the key features to evaluate, and how Keats aligns with each.
1. Advanced Technology and Process Capabilities
A modern stamping supplier should be built around high-speed, highly repeatable processes, not just basic presses.
Look for:
Progressive, coil-fed stamping: For medium to high volumes, this is the backbone of efficient production. A continuously fed strip runs through a progressive die, forming multiple features at once and delivering a finished part with each stroke. Keats specialises in progressive metal stamping from continuous coil, ideal for terminals, connectors, clips, brackets, and busbars that demand tight tolerances at scale.
Four-slide / multi-slide capabilities: These machines excel at complex, three-dimensional forms, small parts, and intricate bends. Keats operates one of the largest four-slide fleets in North America, which allows us to shape highly complex geometries that would be difficult or costly with standard presses.
Precision tooling technology: CNC machining and EDM (wire and sinker) are essential to build and maintain high-precision dies. This is what allows repeatable tolerances like ±0.0005 in. in production, not just in theory.
In-house tooling and die maintenance: A supplier that designs, builds, and services its own tools has tighter control over uptime, quality, and lead times. Keats’ in-house tool and die team supports everything from new die builds to emergency repairs and engineering changes.
Ask potential suppliers to explain which processes they’ll use for your part and why. If they cannot clearly articulate whether your project belongs in progressive stamping, four-slide, or traditional sheet/blank stamping—and the trade-offs involved—that’s a red flag.
2. Deep Experience in Your Part Types and Industries
Years in business matter, but relevant experience matters more.
Consider:
Part families: Has the supplier produced parts similar to yours, terminals, contacts, lead frames, brackets, clips, busbars, etc. at the volumes and tolerances you need?
Industry standards: Do they understand automotive PPAP, medical documentation, or electronics cleanliness and packaging requirements?
Design for Manufacturability (DFM): Can they recommend small changes to thickness, bend radii, hole sizes, or material choices that improve manufacturability and reduce cost?
Keats brings decades of experience in high-precision stampings and assemblies across automotive, electrical distribution, appliance, industrial, and medical applications. That experience translates directly into faster launches, fewer surprises, and more robust tooling decisions up front.
3. Certifications, Compliance, and Traceability
A serious stamping partner needs a mature quality system, not just a certificate on the wall.
Key items to verify:
Quality certifications: ISO 9001, IATF 16949 (for automotive), ISO 14001 (environmental), and any industry-specific standards relevant to your product.
Documented procedures: APQP, FMEA, control plans, PPAP, and structured change-control processes.
Traceability: Lot-level traceability of raw material, process steps, inspection data, and final shipment.
Keats’ ISO 9001, ISO 14001, and IATF 16949 certifications reflect a systemic approach to quality and compliance, not just a checkbox. This is especially important when you’re dealing with safety-critical or high-liability parts.
4. Robust Quality Assurance and Metrology
The best stamping press in the world cannot save you from poor measurement and control. Look at vision systems, CMMs, and SPC charts. At Keats, our quality assurance team is integrated into the stamping process from tool design through to JIT delivery.
5. Tooling Strategy and Die Design Expertise
The sheet metal stamping dies your supplier uses are the heart of the process. Keats’ in-house tool and die group designs progressive dies específicamente optimized for continuous coil feed and high stroke rates.
6. Material and Process Engineering Support
Look for material expertise in brass, copper, and stainless steel. Keats routinely advises customers on material choices that balance performance, formability, and cost.
7. Supply Chain Strength and Delivery Performance
Beyond the press, you need a partner who can support your schedule. We offer The Many Benefits of Just-in-Time Inventory and operate multiple facilities to reduce logistics risk.
8. Customer Service, Communication, and Program Management
Keats takes a customer-centric approach, with engineering, quality, and sales closely aligned so you have a single, coordinated team throughout the life of the program.
When you combine advanced coil-fed progressive stamping, strong tooling and quality systems, deep materials expertise, and reliable program support, you get more than a part—you get a manufacturing partner. That’s the role Keats aims to play: helping you choose the right stamping process (progressive, four-slide, or traditional sheet/blank stamping) and then executing it with the precision, speed, and consistency your business depends on.
How much does it cost to get a die made?
The cost of getting a die made varies based on several factors:
Factor
Impact on Cost
Complexity
More intricate designs require advanced tooling, increasing costs.
Materials
The type and quality of materials used for the die affect pricing.
Production Volume
Higher volumes spread die cost over more units, reducing cost per part.
Customization
Custom features or modifications influence the final price.
On average, die-making costs can range from a few thousand to tens of thousands of dollars, depending on these factors. Understanding metal stamping die design can help you plan your budget effectively. At Keats, our in-house tooling capabilities allow us to optimize die design for cost-effectiveness and efficiency.
What are sheet metal design guidelines?
Designing sheet metal parts requires adherence to specific guidelines to ensure manufacturability and cost-effectiveness. Here are some best practices:
✔ Minimize Complexity: Simplified designs can reduce production costs and improve manufacturability.
✔ Consider Tolerances: Specify tolerances that align with the capabilities of the stamping process to avoid issues during production.
✔ Use Appropriate Materials: Select materials that provide the necessary strength and durability for your application while being suitable for the stamping process.
✔ Design for Assembly: Incorporate features that facilitate easy assembly and reduce the need for secondary operations.
By following these sheet metal design guidelines, you can optimize your designs for metal stamping, ensuring efficient production and high-quality results. Keats also offers secondary services such as plating and deburring, which can further enhance the manufacturability of your designs.
Ready to explore the world of metal stamping?
Visit Keats Manufacturing Co. to dive deeper into our expert insights, industry trends, and tips on choosing the right Metal Stamping Companies for your needs.
When selecting a custom metal stamping provider, it's essential to look for certifications that reflect their commitment to quality and industry standards. At Keats Manufacturing Co., we proudly hold certifications such as ISO:9001 for quality management and ISO:14001 for environmental management. Furthermore, our adherence to IATF:16949 demonstrates our capability in the automotive sector, while other industry-specific certifications underscore our dedication to meeting rigorous safety and performance standards, which are critical factors to consider when choosing a custom metal stamping provider.
In-house tool and die development is essential for optimizing both precision and production timelines. By managing the tooling process internally, we can swiftly adapt to design changes and enhance quality control, which is a key consideration when choosing a custom metal stamping provider. This approach not only fosters innovation but also leads to significant cost savings, as we minimize reliance on external suppliers and streamline the entire manufacturing workflow.
Precision in metal stamping is essential for ensuring that components fit together seamlessly and perform as intended. At Keats Manufacturing Co., we utilize advanced technology and rigorous quality control measures to maintain tight tolerances, which enhances the performance and longevity of your products in demanding applications. When choosing a custom metal stamping provider, consider their commitment to precision as a key factor in ensuring quality outcomes.
Utilizing advanced machinery, such as our unique Wünsch multi-slide machines, allows Keats Manufacturing Co. to achieve intricate designs with remarkable accuracy and speed. This technology enhances our capability to produce large quantities while maintaining stringent quality control measures, including extensive high-precision tolerances of ±0.0005 in. for stamping, which is crucial when choosing a custom metal stamping provider.
To evaluate the experience of a metal stamping provider like Keats Manufacturing Co., consider their industry certifications, such as ISO:9001 and IATF:16949, which reflect their commitment to quality. Additionally, inquire about their project portfolio, showcasing diverse applications and innovations, including the use of their unique Wünsch multi-slide machines. Engaging in discussions with their team can reveal their expertise and problem-solving approach in custom precision metal stamping, particularly regarding their extensive high-precision tolerances.
Quality control is crucial in custom metal stamping due to its impact on product reliability and performance.
Ensures precision and adherence to specifications, reducing errors and rework.
Enhances product consistency, leading to improved customer satisfaction.
Involves rigorous inspections and testing, ensuring compliance with industry standards.
Helps maintain cost efficiency by minimizing waste and optimizing production processes. A robust quality control system signifies a provider's commitment to excellence and dependability.
Posted by Keats Manufacturing on | Comments Off on Metal Stamping Manufacturer
In today’s evolving industrial landscape, precision and efficiency are paramount. As organizations strive to optimize their manufacturing processes, the role of a custom metal stamping manufacturer becomes increasingly critical.
This article examines the intricacies of metal stamping, its market dynamics, and what to consider when selecting a provider. By understanding these elements, businesses can make informed decisions that enhance their production capabilities.
What are Metal Stamping Parts?
Metal stamping parts are components created through a series of processes that shape metal sheets into desired forms. This method is widely utilized across various industries, including automotive, aerospace, and medical devices, due to its ability to produce high-precision components in substantial quantities.
Common Materials Used in Metal Stamping
The choice of material meaningfully impacts the performance and application of metal stamping parts. Some of the most commonly used materials include:
SteelKnown for its strength and durability, steel is often used in automotive and construction applications.
AluminumLightweight and corrosion-resistant, aluminum is ideal for aerospace and electrical components.
BrassWith excellent conductivity, brass is frequently used in electrical terminals and connectors.
CopperWith superior conductivity and formability this is the metal of choice when electrical performance is the key objective
Stainless SteelResistant to corrosion and oxidation, stainless steel is preferred for medical devices and food processing equipment.
Each material offers unique properties that cater to specific application requirements, making the role of a custom metal stamping manufacturer essential for tailored solutions.
In addition to these materials, Keats Manufacturing specializes in advanced alloys, offering further options for industries that require specific characteristics, such as enhanced strength or corrosion resistance. Our expertise in tool and die development ensures that we can create custom solutions tailored to our clients’ precise specifications.
How Big is the Metal Stamping Market?
The metal stamping market has witnessed substantial growth in recent years, driven by demand across various sectors.
$200B
Market Forecast (2026)
5.5%
Projected CAGR
$1.3T
EV Market (2028)
According to industry reports, the global metal stamping market is projected to reach $200 billion by 2026, growing at a CAGR of 5.5%.
Key industries contributing to the growth of metal stamping include:
■Automotive: Expected to see significant growth over the next decade due to increasing demand for fuel-efficient vehicles, electric vehicles (EVs), and hybrids. Experts predict the electric vehicle market will grow to $1.3 trillion by 2028.
■Electrical Distribution: Relies on metal-stamped components for the transmission of energy.
■Appliances: Require high-quality metal-stamped components for optimal operation
Importantly, metal stamping companies in the USA are poised to capture a significant share of this market, thanks to their innovative solutions and advanced manufacturing capabilities.
Key Industries Driving Demand
Several industries are pivotal in propelling this growth, including:
Industry
Demand Driver
Automotive
The need for lightweight, fuel-efficient vehicles has increased demand for precision metal components.
HVAC
Ai data center and infrastructure buildout has increased the demand for metal stamped parts to ensure these facilities are properly cooled
Medical Devices
The rise in healthcare technology necessitates reliable and precise components.
Data / Connectivity
AI data center buildout requirements have driven demand for high-performance connectivity stamped parts to record highs
As a result, metal stamping manufacturers in the USA are positioned to capture significant market share by offering innovative solutions. Keats Manufacturing, with its ownership of one of the largest fleets of four-slide and power press machines in North America, is particularly well-equipped to meet the demands of these industries, providing high-volume production capabilities of up to 50 million parts.
Is Metal Stamping Expensive?
When evaluating the cost of metal stamping, several factors come into play:
Material Costs: The type and quality of materials directly affect pricing.
Complexity of Design: More intricate designs require advanced tooling, which can increase costs.
Production Volume: Higher volumes often lead to lower per-unit costs due to economies of scale.
Cost Efficiency and Scalability
One of the advantages of working with a metal stamping manufacturer near me is the potential for cost efficiency and scalability. Manufacturers can optimize production processes and leverage just-in-time delivery to reduce inventory costs, ensuring that businesses can meet fluctuating demands without sacrificing quality.
At Keats Manufacturing, our just-in-time delivery model, combined with our extensive capabilities in secondary services such as plating, heat-treating, and stress-relieving, allows us to provide tailored solutions that enhance cost-efficiency for our clients.
In addition, our commitment to ISO 9001, ISO 14001, and IATF 16949 certifications ensures that every component produced meets stringent quality standards, further supporting our clients’ operational needs. By engaging in design-for-stamping discussions early in the project lifecycle, we can help clients reduce material costs and improve overall project efficiency.
Interestingly, many of the top 10 largest metal stamping companies leverage their scale to optimize production costs, allowing them to offer competitive pricing while maintaining high standards of quality. Understanding the strategies employed by these industry leaders can provide valuable insights into cost management and efficiency.
What Should I Consider When Choosing a Custom Metal Stamping Provider?
Selecting the right custom metal stamping manufacturer is essential for ensuring quality and reliability. Here are the key criteria to consider:
Experience
Proven track record in your industry
Capabilities
Tool/die and secondary services
Certifications
ISO 9001 and IATF 16949
Communication
Clear updates and needs understanding
Additionally, consider metal stamping companies near me for localized support and faster turnaround times.
Evaluating these criteria together helps avoid common sourcing mistakes and supports long-term manufacturing success. Our blog, Key Considerations When Choosing a Metal Stamping Partner, outlines a structured approach to selecting the right supplier
What are the Key Features to Look for When Choosing a Stamping Manufacturer?
When selecting a metal stamping manufacturer, several features are pivotal:
Precision: Look for equipment that can achieve tight tolerances, such as ±0.0002 in.
Automation: Advanced automation capabilities can enhance efficiency and reduce labor costs.
Staying ahead in the competitive landscape requires a manufacturer that embraces technology and innovation. This commitment ensures that they can meet evolving industry standards and customer demands, solidifying their position as a leader among metal stamping companies in the USA. For instance, Keats Manufacturing operates one of the largest fleets of four-slide / multi-slide stamping and forming machines in North America, including unique Wünsch multi-slide machines, which enhance precision and production efficiency.
What is the Difference Between Die Cast and Stamping?
Understanding the differences between die casting and stamping is essential for selecting the right manufacturing process for your needs.
Die Casting: This process involves forcing molten metal into a mold, resulting in complex shapes with smooth surfaces. Commonly used for non-ferrous metals, die casting is ideal for high-volume production of intricate components.
Metal Stamping: In contrast, metal stamping shapes flat sheets of metal into desired forms through cutting, bending, and forming processes. It is widely used for producing high-precision parts in various industries. A custom metal stamping manufacturer can tailor these processes to meet specific design requirements and tolerances.
Process
Advantages
Disadvantages
Die Casting
Complex shapes / fine details
Smooth surface finishes
High-volume intricate parts
Higher initial tooling costs
Limited to non-ferrous metals
Longer lead times
Metal Stamping
Cost-efficiency for high volumes
Simple to moderate shapes
Faster production times
Simpler designs than die casting
May need surface processing
Requires precise tooling
Choosing between these methods depends on your specific requirements, including material, complexity, and production volume. Consulting a metal stamping manufacturer near me can provide tailored guidance.
How Much Does It Cost to Get a Die Made?
The cost of tooling (including the dies) varies meaningfully based on several factors:
Complexity of Design: More intricate dies require advanced engineering and tooling, increasing costs.
Material Selection: The choice of material for the die itself can influence pricing.
Manufacturer Experience: Established manufacturers may charge more due to their expertise and reliability.
Average Cost Range
$10,000 to $75,000
Depending on part size and complexity
On average, the cost of tooling (including the dies) is a major component of the manufacturing process, and several factors determine these costs. The expense associated with dies is addressed through the lens of economic analysis (an economic feasibility analysis determines the cost of the part, production, and tooling), complexity (For traditional press stamping, creating sharper bends and more detailed cuts requires more expensive, specialized tooling), and manufacturing methodology (four-slide stamping typically requires a lower initial tooling investment compared to other fabrication techniques).
Generally, stamping dies produced by Keats can range from $10,000 to $75,000, depending on the size and complexity of the part being produced by the die. It’s essential to budget accordingly and consider the long-term benefits of investing in high-quality dies for your production needs. Additionally, the cost of producing metal stamping parts through these dies must also be factored in, as the efficiency and precision of the die will directly impact the overall production costs.
Understanding the dynamics of the metal stamping industry and selecting the right metal stamping manufacturer can considerably enhance your manufacturing capabilities.
Additional Considerations for Selecting a Custom Metal Stamping Provider
When evaluating potential partners, consider the following enhanced criteria:
In-House Tooling Capabilities: A manufacturer like us offers in-house tool and die development with a lifetime guarantee. This ensures that your tooling is precisely tailored to your specifications, reducing lead times and enhancing quality control.
Volume Production Capacity: Assess the manufacturer’s ability to handle your production volume. Keats can produce up to 50 million parts, making it a strong candidate for high-volume projects.
Secondary Services: Look for providers that offer a comprehensive range of secondary services such as plating, heat-treating, deburring, degreasing, and stress-relieving. We integrate these services, which can streamline your supply chain and reduce the need for multiple vendors.
Geographical Advantages: Consider manufacturers with strategically located facilities. Keats operates three state-of-the-art campuses in Illinois, Texas, and Mexico, allowing for efficient logistics and just-in-time delivery.
Compliance and Quality Assurance: Ensure that the manufacturer adheres to rigorous quality standards. Keats is compliant with ISO 9001, ISO 14001, and IATF 16949, which guarantees that their processes meet industry benchmarks for quality and environmental management.
Conclusion
In the evolving landscape of manufacturing, selecting a custom metal stamping provider can significantly impact your operational efficiency and product quality. By considering factors such as experience, capabilities, and technological advancements, you can make an informed decision that aligns with your specific needs.
At Keats Manufacturing, we are dedicated to delivering precision-engineered solutions tailored to your requirements. Our extensive capabilities, commitment to quality, and innovative technologies position us as a leader in the metal stamping industry.
Ready to elevate your manufacturing process?
Explore our comprehensive range of services, including custom small metal stampings, wire forms, and assemblies. Connect with our engineering team today to discuss your specific requirements and discover how Keats Manufacturing can provide tailored solutions that meet your needs.
At Keats Manufacturing Co., we offer a comprehensive range of metal stamping services designed for precision and efficiency in industrial applications:
Our extensive capabilities include high-speed stamping with advanced automation for optimal production rates, utilizing our unique Wünsch multi-slide machines for complex geometries.
As a leading metal stamping manufacturer, we achieve tight tolerances of ±0.0005 in. for stamping, ensuring that every component meets rigorous specifications.
Our experienced engineering team collaborates closely with clients to customize solutions that enhance performance and reduce costs.
Yes, Keats Manufacturing Co. offers fully customized designs for metal stamping parts:
Our dedicated engineering team works hand-in-hand with clients to create innovative solutions that meet unique project requirements.
As a leading metal stamping manufacturer, we leverage our extensive experience in material selection and production techniques to enhance design functionality.
Each custom design benefits from our commitment to quality assurance, ensuring that all parts adhere to the highest industry standards.
Our in-house tool & die development at Keats Manufacturing Co. is designed for efficiency and reliability:
We utilize advanced CAD software to design tools specifically for metal stamping manufacturing that meet your exact specifications, ensuring optimal performance.
Each tool undergoes rigorous testing to guarantee its longevity and effectiveness in production.
This capability allows us to streamline the manufacturing process while consistently delivering high-quality results.
Keats Manufacturing Co. excels in high-volume metal stamping production:
Our extensive experience in diverse industries allows us to adapt quickly to varying production demands.
We implement rigorous quality control processes, including real-time monitoring and testing, to ensure consistency across large batches.
Our ownership of one of the largest fleets of four-slide machines in North America enables us to efficiently produce complex parts while reducing lead times.
Posted by Keats Manufacturing on | Comments Off on Precision Metal Stamping
Precision metal stamping is a critical process in the manufacturing landscape, known for its ability to create high-quality components with exceptional accuracy. This method is pivotal for industries that demand tight tolerances and high-volume production. In this article, we will examine the intricacies of precision metal stamping, its applications, types, and best practices for ensuring quality in the parts you order.
Established 1958
Max Precision ±0.0001″
High Volume 50M Parts
Global Reach 3 Locations
What is Precision Stamping?
Precision stamping refers to the process of shaping and cutting metal sheets into specific forms using specialised equipment. It is meaningful in manufacturing due to its efficiency and ability to produce parts with high precision and repeatability. As a leading precision stamping company, Keats specialises in delivering high-quality components tailored to the specific needs of various industries.
Industries that utilise precision metal stamping include:
✔Automotive: For components such as brackets, clips, and electrical terminals.
✔Appliance: Producing cost-effective clips and brackets at high volumes.
✔Medical Devices: Creating intricate components that require strict adherence to quality regulations.
✔Electrical Distribution: Manufacturing parts like connectors and terminals that are essential for reliable electrical systems.
✔Renewable Energy: Crafting components for solar panels and wind turbines that need to withstand extreme conditions.
Understanding the role of precision stamping in these sectors highlights its importance in delivering reliable and efficient solutions. Keats Manufacturing Co. has been at the forefront of this industry since 1958, leveraging one of the largest fleets of four-slide machines in North America, including unique Wünsch multi-slide machines, which enhance our capability to produce complex geometries with high precision.
What are the Types of Metal Stamping?
The main types of metal stamping processes include:
Progressive Die Stamping
This method involves a series of processes that occur in a single machine. It is ideal for high-volume production and allows for complex shapes to be formed efficiently.
Applications: Used for producing parts like connectors and brackets.
Advantages: High efficiency and reduced waste.
Four-Slide Stamping
Utilising multiple slides, this method allows for intricate parts to be formed in one operation.
Applications: Commonly used for electrical terminals and clips.
Advantages: Flexibility in design and high-speed production. Keats Manufacturing specialises in this area, offering high-precision tolerances of ±0.0002 inches for stamping, ensuring that every component meets stringent specifications. As one of the leading aluminium stamping companies, we also specialise in creating high-quality aluminium components that cater to various applications.
While these methods deliver exceptional accuracy, not every application requires this level of precision. Our blog: Is Precision Metal Stamping Right for Your Application? walks through the key factors to help determine when precision stamping is the best fit.
Single-Stage Stamping
This process involves a single operation to create a part from a sheet of metal.
Applications: Suitable for simple shapes and low-volume production.
Advantages: Cost-efficient for smaller runs.
Deep Draw Stamping
This method is used to create deep, hollow parts from flat metal sheets.
Applications: Often used in the manufacturing of automotive parts and containers.
Advantages: Ability to create complex shapes with minimal seams.
Each type of precision metal fabrication offers unique advantages tailored to specific applications, making it essential for manufacturers to choose the right process for their needs. At Keats Manufacturing, we design and build our tools in-house. We back them with a lifetime guarantee, ensuring that our customers only invest once in tooling. The tooling we construct is of the highest quality and reliability.
How Can I Ensure the Quality and Precision of the Stamped Parts I Order?
Selecting a reliable precision stamping company is essential for ensuring that the parts meet your specifications. Here are some best practices:
Check Quality Certifications
Look for companies that hold certifications like ISO 9001, ISO 14001, and IATF quality certification 16949. These certifications indicate a commitment to quality management systems. Keats Manufacturing is fully compliant with these standards, ensuring that our processes meet international quality benchmarks.
Experience Matters
Choose suppliers with a proven track record in your industry. Their experience can lead to a better understanding and execution of your requirements. Since 1958, we have been delivering custom small metal stampings, wire forms, and assemblies tailored to various industries, establishing a legacy of excellence.
Beyond supplier experience, it’s also important to evaluate whether precision stamping is truly the right approach for your specific part requirements. Our blog: Is Precision Metal Stamping Right for Your Application?, outlines the key considerations that help guide that decision.
Quality Control Measures
Inquire about the quality control processes in place, including inspection methods and testing protocols. At Keats, we utilize advanced quality control measures, including DCC programmable CMM inspections, to verify tolerances of ±0.0001 inches, ensuring that every part produced meets the highest standards of precision.
Precision Metal Stamping Locations
When searching for precision metal stamping near me, ensure that the company you consider has strategically located facilities. Our locations in Illinois, Texas, and Mexico allow us to provide just-in-time delivery for high-volume production, with the capability of producing up to 50 million parts efficiently.
Understanding the intricacies of precision metal stamping and selecting the right partner can meaningfully impact the quality and reliability of your components. By prioritising quality certifications, experience, and robust quality control measures, you can ensure that your manufacturing needs are met with precision and excellence.
What is the Best Metal for Metal Stamping?
The choice of metal meaningfully impacts the precision metal stamping process and the final product. Common metals used include:
Metal Type
Key Properties & Applications
Aluminium
Lightweight and corrosion-resistant, ideal for automotive and aerospace applications. Explore more about Aluminum Alloys for Metal Stamping.
Known for its excellent conductivity, often used for electrical components.
Stainless Steel
Resistant to corrosion, making it suitable for medical and food applications.
The properties of each metal affect how easily it can be stamped. For instance, softer metals like aluminium are generally easier to stamp than harder metals like stainless steel. This choice influences not only the stamping process but also the overall performance of the final product. If you’re wondering, what is the easiest metal to stamp? Aluminium often ranks at the top due to its malleability.
How Much Does It Cost to Get a Die Made?
The cost of die-making can vary widely based on several factors:
Complexity of the part Design: More intricate designs require more time and resources to create.
Material Selection: The type of material used for the die can affect costs.
Production Volume: Higher volumes can lead to lower per-unit costs, but initial die costs may be higher.
Generally, the price range for getting a die made can start from a few thousand dollars and can go up to tens of thousands, depending on the above factors. Understanding the stamping die process can help in budgeting and planning for your future projects.
How Thick Can You Stamp Metal?
The maximum thickness you can stamp depends on the material, part geometry, press tonnage, and tooling design, but most precision metal stamping falls in a fairly predictable range. For fine terminals, connectors, and small springs, stampers often work with thin strips in the 0.003–0.060 in (0.08–1.5 mm) range. For heavier parts like brackets and copper busbars, Keats can stamp material up to roughly 0.125–0.250 in (3–6 mm), provided the press and tooling are sized correctly.
Key factors that affect how thick you can stamp include:
Material type and strength – High-strength steels and hard tempers require more tonnage than soft copper or aluminium at the same thickness.
Part design – Deep forms, tight radii, and complex pierce patterns may require thinner material or multiple operations.
Required tolerances and edge quality – The tighter the tolerance, the more carefully thickness, clearances, and tooling wear must be controlled.
In practice, the best way to answer “Can this thickness be stamped?” is to review the print, material spec, and thickness together so the stamping engineer can confirm what’s practical and recommend the right process. If you’re considering whether is metal stamping expensive? It’s essential to weigh the costs against the quality and precision that can be achieved.
The Role of Precision in Metal Stamping
At Keats Manufacturing Co., our commitment to precision is evident in our extensive capabilities. We operate one of the largest fleets of four-slide machines in North America which allows us to achieve high-volume production with tight tolerances of ±0.0002 inches. This precision is critical, especially in industries such as automotive and aerospace, where components must meet stringent specifications.
Our in-house tool and die development ensures that we can create custom dies tailored to specific project requirements, backed by a lifetime guarantee. This capability not only enhances the quality of the stamped products but also streamlines the production process, reducing lead times and costs.
Common Applications of Metal Stamping
Metal stamping is widely used across various industries, each requiring specific materials and tolerances. For instance, in the automotive sector, bronze terminal stampings are critical for ensuring reliable electrical connections in steering systems. Our Automotive Steering Position Sensor Terminal, made from 0.0238-inch thick phosphor bronze with a tight tolerance of ±0.0002 inches, exemplifies our dedication to quality and precision.
In the Custom metal stamping appliance industry, our brass terminal screw assemblies are designed for optimal conductivity and durability, making them ideal for electrical components. The choice of materials and the precision of our stamping processes ensure that these components perform reliably under various conditions.
Conclusion
By understanding the nuances of precision metal stamping, you can make informed decisions that enhance your manufacturing capabilities and ensure the delivery of high-quality components. The choice of metal, the cost of die-making, and the thickness limitations are all critical factors that influence the overall success of your projects.
Ready to discover how metal stamping can elevate your manufacturing process?
Keats Manufacturing Co. ensures high precision in metal stamping by:
Implementing advanced computer-aided design (CAD) technology tailored for our unique Wünsch multi-slide machines, which allows for precise tooling in metal stamping.
Employing skilled technicians with extensive training in precision manufacturing, specifically in high-precision tolerances of ±0.0005 in. for stamping.
Conducting regular audits and continuous improvement processes to enhance production accuracy, ensuring compliance with ISO 9001 and IATF 16949 standards.
Our in-house tool and die development at Keats Manufacturing Co. emphasizes precision and adaptability:
We utilize advanced CAD software to design custom tools specifically for our unique Wünsch multi-slide machines, ensuring they meet your exact specifications
Our experienced team conducts rigorous testing on each tool to ensure optimal performance in high-volume production
We prioritize fast prototyping, often delivering initial samples within two weeks, to facilitate your project timelines and enhance production efficiency.
Keats provides comprehensive design support for precision metal stamping by:
Collaborating closely with clients to understand specific requirements
Utilizing advanced CAD software for precise design modeling
Offering prototyping services to test and refine designs
Ensuring manufacturability with expert engineering analysis
Providing feedback to optimize cost-efficiency and performance. This approach ensures high-quality, tailored solutions that meet client needs effectively.
Posted by Keats Manufacturing on | Comments Off on Custom Metal Stamping Manufacturer
In the competitive industry of precision manufacturing, understanding the nuances of custom metal stamping is essential for engineers and procurement professionals alike. This article explains the key aspects of custom metal stamping manufacturers, providing insights into processes, applications, and key considerations for selecting the right partner. By the end, you’ll be equipped with the knowledge to make informed decisions that elevate your manufacturing capabilities.
1958
Experience Since
±0.0002 in
Tight Tolerances
150–175
Stamping Machines
3
Global Facilities
What Are Metal Stamping Parts?
Metal stamping parts are components created through a manufacturing process that involves the deformation of metal sheets. This technique produces complex shapes and designs with high precision and repeatability.
Common materials used in metal stamping include:
Material
Key Properties
Steel
Known for its strength and durability.
Aluminum
Lightweight and resistant to corrosion.
Stainless Steel
Known for its corrosion resistance and strength.
Brass
Offers excellent machinability and conductivity.
Copper
Known for its electrical conductivity.
These materials are chosen based on the specific requirements of the application, ensuring that the final product meets performance and durability standards. At Keats Manufacturing Co., we utilize techniques such as CNC (computer numerical control) and CAD/CAM to ensure that every part is manufactured with exceptional precision. Our commitment to quality means that we can achieve tolerances as tight as ±0.0002 in / 0.005mm., ensuring that your components meet the highest standards.
What Is Metal Stamping Called?
What Is Metal Stamping? refers to the process of shaping sheet metal using dies and presses. The industry uses various related terms to describe similar or overlapping processes. Some synonyms and related terms include:
Sheet Metal Fabrication: A broader term encompassing various processes, including stamping.
Metal Forming: An umbrella term that includes any process that shapes metal.
Progressive Stamping: A term that refers to producing parts on a progressive die
Understanding these terms can help clarify the specific processes and capabilities offered by custom metal stamping manufacturers. At Keats, all dies and tooling are engineered and built in-house, allowing us to maintain strict quality control and customization capabilities. This in-house development ensures that we can adapt quickly to your specific needs, whether you are looking for a prototype or high-volume production runs.
Can You Explain the Different Types of Metal Stamping Processes Used in Manufacturing?
Metal stamping is one of the most widely used manufacturing processes today, utilizing metal presses to stamp, punch, bend, emboss, tool, and notch metal sheets to form complex parts. This process encompasses a variety of specific techniques and large-scale methodologies.
1. Four-Slide/Multi-Slide Stamping: Four-slide stamping is a sophisticated alternative to conventional progressive die stamping that excels at producing complex metal goods with a high degree of accuracy and control. Additionally, Four-Slide/Multi-Slide Stamping often utilizes less material to produce a part than other methods.
2. Progressive Die Stamping: Progressive die stamping, often associated with a traditional punch press, is a high-volume manufacturing method where the part stays attached to the strip as it progresses through multiple bending, cutting and forming operations until it is finally broken free in the last operation.
Specific Metal Stamping Operations:
Blanking, Piercing, Punching, Bending, Coining, Flanging, Embossing, Drawing, and Curling.
Manufacturers use several metal stamping processes, within the same set of tooling, each suited for different part requirements, each performed by its own punch and die within the larger toolset.
Understanding these sheet metal stamping processes enables manufacturers to choose the right method for their specific needs. At Keats Manufacturing Co., we leverage over 150–175 stamping and wire-forming machines across three facilities, allowing us to offer a diverse range of stamping processes tailored to your project requirements. We offer The Many Benefits of Just-In-Time Inventory delivery, which ensures that your components are delivered exactly when you need them, minimizing inventory costs and streamlining your supply chain.
Our lifetime guarantee on tooling protects your investment and enables long-term partnerships built on trust and reliability. We also offer secondary services such as deburring, plating, and heat treating, ensuring complete process coverage.. This full-service approach enhances efficiency and simplifies communication and project management for our clients. Our decades of experience, since 1958, across multiple industries, provide the expertise to guide you through every step of the custom metal stamping process.
What are some common applications or industries that utilize sheet metal stamping?
Sheet metal stamping is widely used across multiple industries because it enables consistent, repeatable component production :
Automotive Appliance Medical devices Electrical distribution Renewable energy
Automotive: Components like brackets, chassis parts, and engine components.
Appliance: Structural parts, brackets, and enclosures.
Medical devices: Surgical instruments and housings.
Electrical distribution: Connectors and enclosures.
Renewable energy: Components for solar panels and wind turbines.
These applications highlight the versatility and importance of metal stamping in various sectors. Keats Manufacturing Co. has played a meaningful role in the automotive industry, with nearly every car in North America containing a part manufactured by us, showcasing our extensive experience and capability in delivering high-quality components.
What are the key features to look for when choosing a stamping manufacturer?
The most important features to consider when choosing the best custom metal stamping manufacturer include experience, technology, customer support, and certifications:
Experience: Look for manufacturers with a proven track record in your industry.
Technology: Advanced machinery and techniques can enhance precision and efficiency. At Keats, we operate over 150–175 stamping and wire-forming machines across three facilities, ensuring that we can meet diverse manufacturing needs.
Customer service: A responsive and knowledgeable team can address your needs successfully.
Certifications: Ensure the manufacturer holds relevant quality certifications, such as ISO 9001, IATF 16949, and ISO:14001, to guarantee adherence to industry standards. Our multiple high-level certifications reflect our commitment to quality and reliability.
These factors are essential for ensuring quality and reliability in your manufacturing processes. Additionally, Keats offers in-house tooling backed by a lifetime guarantee, which further enhances our reliability as a manufacturing partner.
The metal stamping industry is evolving, with several notable trends:
Automation: Increased use of automated processes enhances efficiency and reduces labor costs. At Keats, our just-in-time (JIT) delivery capability includes automated assembly processes that can handle up to 200 pieces per minute, demonstrating our commitment to efficiency.
Sustainability: Manufacturers are focusing on eco-friendly practices, such as reducing waste and using recyclable materials.
Advanced materials: The adoption of high-strength materials allows for lighter and more robust designs.
How long has metal stamping been around?
The history of metal stamping dates back to the 19th century, with considerable advancements occurring during the Industrial Revolution. Initially, metal stamping was done manually, but the introduction of mechanized processes revolutionized the industry. Over the years, the technology has evolved, leading to the development of sophisticated machinery that allows for high precision and efficiency in production. Today, manufacturers like us leverage technologies such as CNC and CAD/CAM to achieve tolerances as tight as ±0.0002 in., ensuring that our products meet the highest standards of quality.
Who makes stamping presses?
Major stamping manufacturers worldwide include both large corporations and specialized firms. When choosing press equipment for metal stamping operations, consider:
Type of press: Mechanical vs. hydraulic presses, each with its advantages.
Capacity: Ensure the press can handle the required tonnage for your applications.
Technology: Look for features like CNC controls for enhanced precision.
Selecting the right equipment ensures optimal results in your metal stamping operations. Keats Manufacturing Co. stands out by engineering and building all dies and tooling for our presses in-house, ensuring that we maintain strict quality control throughout the manufacturing process. Our in-house tool and die development capabilities, including EDM (electrical discharge machining), further enhance our ability to produce high-quality stamped parts.
Conclusion
The most important features to consider when choosing the best custom metal stamping manufacturer include experience, technology, customer support, and certifications:
Ready to explore the metal stamping industry further?
Discover the top companies, innovative techniques, and industry insights that can elevate your projects.
At Keats Manufacturing Co., our custom metal stamping services are tailored for a wide range of industries, including:
Medical, where our precision stamping ensures reliability for life-saving devices with tolerances of ±0.0005 in.
Consumer products, enabling innovative designs for everyday items. With extensive industry knowledge since 1958, we meet the unique requirements of each sector through in-house tool & die development and a commitment to quality.
Keats Manufacturing Co. ensures high precision in metal stamping by:
Utilizing one of the largest fleets of four-slide machines in North America, including unique Wünsch multi-slide machines for complex designs
Implementing rigorous quality control measures throughout the production process, including extensive high-precision tolerances of ±0.0005 in. for stamping
Leveraging skilled technicians with extensive experience in metal forming techniques. This dedication guarantees that your components consistently meet the required specifications.
The metal stamping process at Keats Manufacturing Co. includes several essential stages:
Initial design consultation to tailor solutions to your needs as a custom metal stamping manufacturer
High-speed stamping with our state-of-the-art equipment for intricate designs
Rigorous inspection protocols that comply with industry standards, ensuring product reliability and consistency. This method guarantees precision and quality throughout the production cycle.
At Keats Manufacturing Co., we manage high-volume production effectively by:
Leveraging our extensive fleet of four-slide machines, including unique Wünsch multi-slide machines, to enhance operational efficiency as a Custom Metal Stamping Manufacturer.
Implementing rigorous quality control measures throughout the manufacturing process, including ISO 9001 and IATF 16949 certification.
Utilizing a skilled workforce trained in advanced metal stamping techniques. This allows us to fulfill large orders promptly while ensuring exceptional quality.
Lead times for custom metal stamping at Keats Manufacturing Co. typically depend on:
The intricacy of the design and any required revisions
Our current workload and resource allocation across our facilities in IL, TX, and Mexico
The sourcing and readiness of raw materials, which are critical for any custom metal stamping manufacturer. We prioritize timely delivery and will provide a precise timeline during the order consultation process.
Implementation of a robust internal audit system to monitor compliance with custom metal stamping standards
Use of state-of-the-art inspection technology for precise measurements
Regular training programs for staff to uphold quality standards These initiatives guarantee that each component adheres to your exacting quality specifications.
